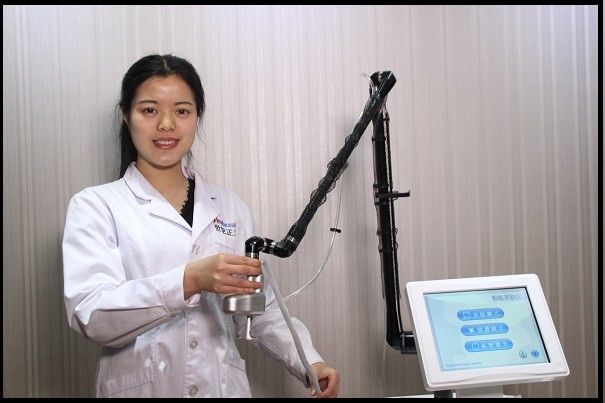

30W USA RF metal tube Ultrapulse CO2 fractional laser machine for acne scar removal with 7 JOINT ARM

Product Description



30W USA RF metal tube Ultrapulse CO2 fractional laser machine for acne scar removal with 7 JOINT ARM





Quick Detail:





1, Remove scar, wrinkle, acne, pigment etc





2, 30W RF metal tube from USA





3, Self-calibration, no maintenance work





4, Medical CE approval





Principle:





Fractional Laser System fires a laser beam which is then split inti numbers f





microscopic beams, producing tiny dot,or pixel-like treatment zones within the





selected area of the skin,leaving the other zones within it perfectly intact. Therefore





,the heat of laser only passes deeply through the fractional damaged area. This





allows the skin to heal much faster than if the whole area was treated. During the





skin self-resurfacing , a great number of collagen is produced for skin rejuvenation.





Eventually the skin will look much healthier and younger.





Applications:





Acne scars, Actenic keratoses, Basal cell carcinoma





Specifications :





Electrical   Requirements	AC 110V± 10% 60Hz   AC 220V± 10% 50Hz	Beam   Delivery	7 joint arm
Wavelength	10600nm	Cooling	Air cooling
Aiming   wavelength	635nm	Output   mode	Continuous, super pulse,   fractional
Focal Spot   Diameter	0.2mm	Operating   mode	Continuous, operation with,   intermittent loading
Power of   Aiming Beam	≤ 5mw	Whether   Preview or   not	Yes
Pulse Interval	1ms-5000ms, every   stepping 1ms	Times of   scanning	1th-20 th, every stepping 1th
Pulse Width	0.1ms-10ms, every stepping 0.1ms
Scanning   Mode	Disorder emitting, to one side as the base emitting in order,   emitting by maximum distance
Output   Power	30W (RF metal tube from USA)
Output   Pattern	Beeline, triangle, right square, rectangle, hexagon, rotundity, ellipse   and so on
Spots Interval	0.1mm-2.6mm, every stepping 0.1mm
Pattern Size	Diagonal length from 0.1mm to 20mm is adjustable at random





Before and after treatment picture
