30W Erbium Glass Fractional Laser fractional laser 10 regular shapes and DIY with Medical CE

Product Description





30W with Medical CE Anybeauty Erbium Glass Fractional







Laser fractional laser 10 regular shapes and DIY









Principle







F8 Fractional Laser System fires a 1550nm erbium glass fiber laser beam which is





then split into numbers of microscopic beams, producing tiny dot, or pixel-like





treatment zones within the selected target area of the skin, leaving the other zones





within it perfectly intact.







Therefore, the heat of laser only passes deeply through the fractional damaged area.





This allows the skin to heal much faster than if the whole area is treated. During the





skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation,





eventually the skin will look much healthier and younger.





Applications





1. Remove acne, acne scar, scar and so on.





2. Remove wrinkle around the eyes, crow's-feet, and wrinkle formed by lack of





water.





3. Effectively reduce the wrinkle on the face, forehead, the joints and striae





gravidarum





4. Remove freckle, nevus zygomaticus and other spots formed by





hyperchromic pathological changes





5. Skin activator





6. Remove striae gravidarum and other deep scars





Features





1 Human-design interface and clear settings display, which makes operation more





convenient





2 Output pattern can be freely set according to difference of treatment part and any





shapes





3 the computer automatically store customer’s information .it is easy to operate





4 Laser generator imported from UK brings more stable performance, even scan and





more efficient use of power





5 Transmitted by fiber optical that makes much faster & secure operation





Specifications





Wavelength	1550nm
Type of laser	1550 fiber laser
Pulse duration	0.067ms - 6.7ms
Pulse energy	10mj to 200mj, 1mj step
Focus spot     diameter	50um-2000um adjustable
Operating mode	Continuous or adjustable
Output Mode	Continuous, super pulse, fractional
Power	30 W (20 W, 10 W optional)
Output pattern	10 regular shapes and DIY
Scanning mode	Random scan, Sequence scan
Pulse interval	1ms-100ms. Step 1ms continually
Work voltage	AC 220V±10% 50Hz (AC 110V±10% 60Hz)
Net weight	35KG





Before and after

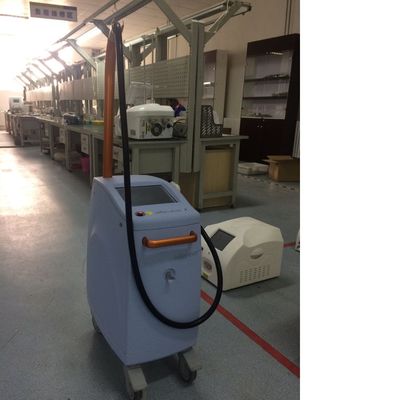

Machine demo







Packing
