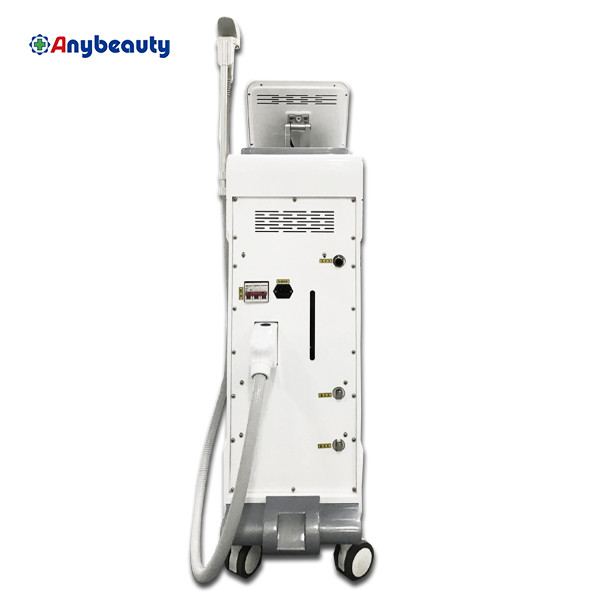

20 Million Shots 808nm Diode Laser Hair Removal Vertical Model For Clinic

Product Details:
Place of Origin: Beijing, China
Brand Name: Anybeauty
Certification: Medical CE, CE, ISO13485, SFDA
Model Number: 808t-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Aluminium case
Delivery Time: 1~7 working days
Payment Terms: T/T, Western Union/paypal/credit card
Supply Ability: 400 sets/month

Detail Information

Brand: Beijing Anybeauty Laser Type: 808nm Diode Laser
Spot Size: 15*15mm2 Certificate: Medical CE ISO
Model Number: 808t-x
High Light:

medical laser equipment


hair removal equipment

Product Description

20 million shots 808nm diode laser hair removal vertical model for clinic use


Working Theory

BM104 laser hair removal machine is based on selective solar-thermal dynamics, through adjusting the wavelength, energy and pulse width of the laser through the skin to the hair root hair follicles, the heat energy is absorbed and break down the follicle tissue, making hair regeneration.The system of quick freezing point hair removal apply for refrigeration protection,It can make the temperature up to -5℃,It solves a lot difficulties.At the same time , it is safe, quick and permanent technology.


Technical Features

Wavelength 808nm, 755nm, 1064nm
Working frequency 1~10hz
Energy density 1-120j/cm2
Handle piece cooling TEC+sapphire
TEC cooling 12V6A
Spot size 15cm×15cm, 20*25cm, 25 x31mm
Output power 600w, 900w, 1200w
Laser chips Germany laser Jenoptik,150W/piece
Pulse width 5ms~400ms
Output mode Pulse output
Language Standard English
display 8’ color touch screen
Protective temperature 55℃ interface select
Water pump DP-60 diaphragm rods 12V
Flow sensor 3.5L/min flow requirement
Water level switch Test water level
Cooling system 240×120cooling line(2pc),18 pcs channel
Cooling fan 4pcs fans,speed 3150r/min
Case material ABS shell/metal shell
Inter structure White zinc hob/color zinc hob
Water tank volume vertical3.6L/table type 2.5L
Environmental moisture < 80%
Environment temperature Air conditioning room,temperature≤28℃
Voltage 110V/220V



Skin cooling system before,during and after treatment provide skin cooling to protect the skin and reduce the initial temperature of the skin. This can reduce the discomfort of the patient. The most important is that without increase of side effects and pain, the treatment energy can be adjusted to higher, and the treatment will be faster and better.

Dense hairs (30-40 hairs per cm2) will produce a higher temperature because there is more melanin in them . Excessive heat of surrounding tissue is likely to cause tissue damage. Therefore, the greater the density of hair is, the lower the energy should be.


808 diode laser provides you with some default energy settings according to different areas and skin types. Pulse width is controlled automatically by program according to plenty of experiments and clinical trials.


1. What’s good for me?


It’s simple to use. You select treatment area and skin type, and start from the default safe value. That’s it.


2. Microchannel Cooling in Handpiece


High heat flux removal is a major consideration in diode laser system, especially with such high power. Micro channel is naturally suitable for the task of high flux heat removal, as it provides a large heat transfer surface area per unit fluid flow volume.
